  • J2C

  • J2C

    APPLICATIONS

    Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

    The high efficiency and adaptability of these pumps to even the most unusual of applications,makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets.


    USING LIMITS

    Liquid temperature between-10℃ and +120℃

    Ambient temperature up to +50℃

    Max. working pressure 16 bar

    Continuous service S1

    • 0.00
      0.00
Product Description

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

The high efficiency and adaptability of these pumps to even the most unusual of applications,makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets.


USING LIMITS

Liquid temperature between-10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

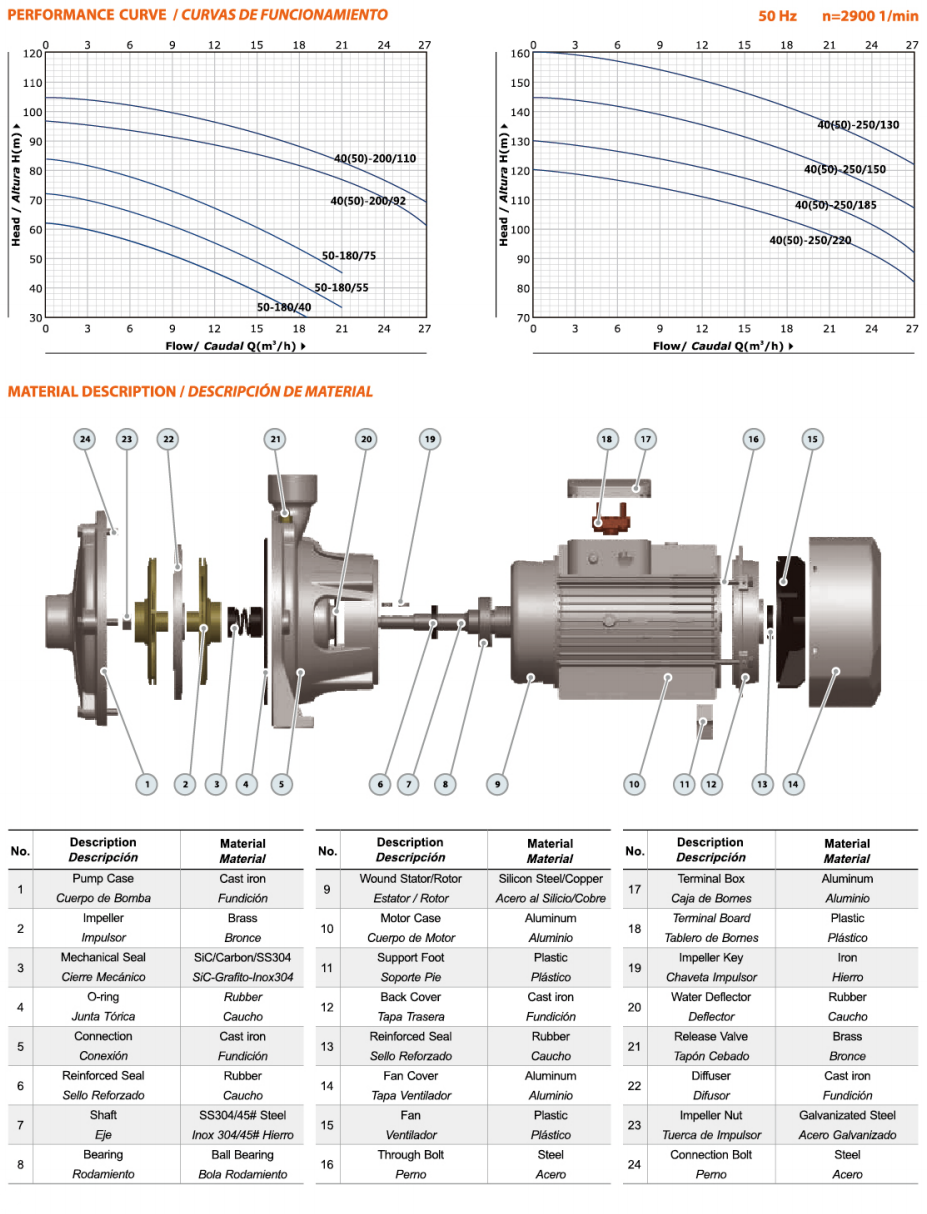

TECHNICAL DESCRIPTION

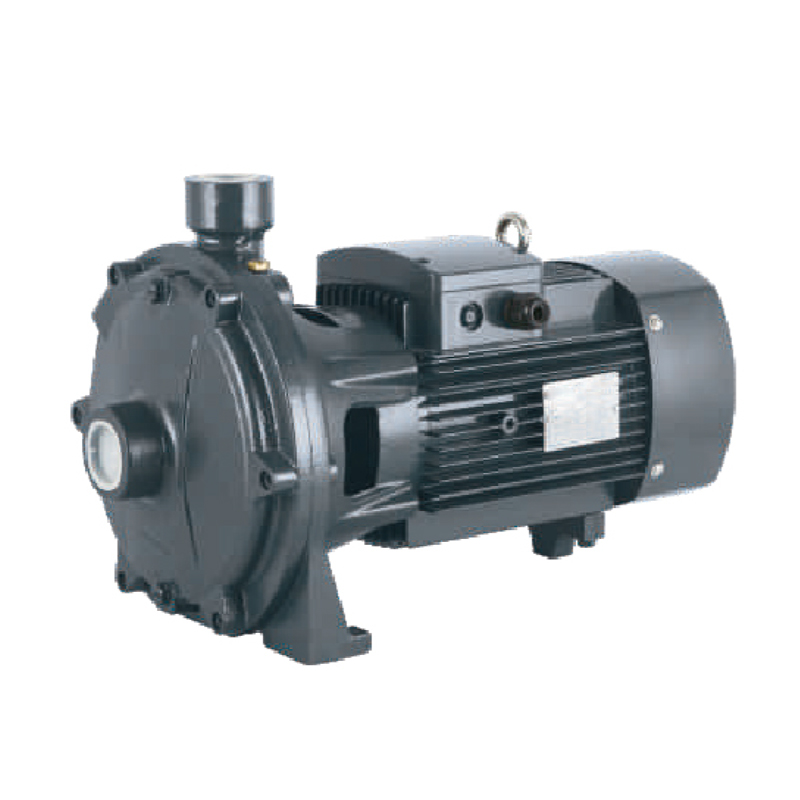

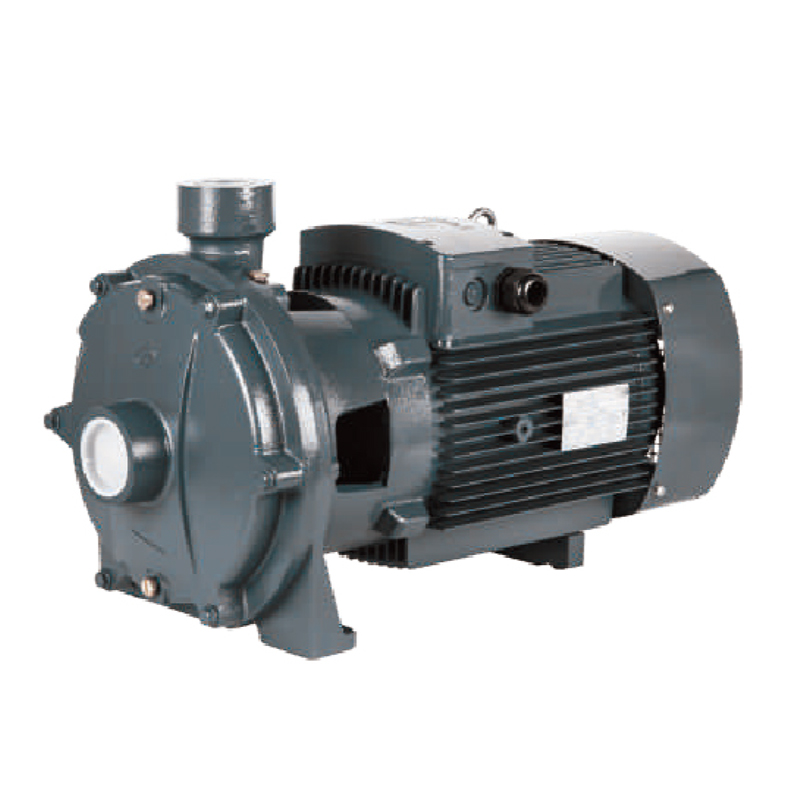

  • New double impeller centrifugal pump

  • Original design by PURITY

  • Both square motor & round motor available

  • YE3 high efficient motor, with protection IP55 class F

  • Pump case with anti-corrosive coating

  • Double impeller in brass

  • Shaft in stainless steel AISI 304 or galvanized iron

  • Suction and discharge port in G20 thread

  • Quality NSK bearing,wear resistance mechanical seal

、
