    APPLICATIONS

    Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

    The centrifugal pumps are recommended for use in water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets,agricultural.


    USING LIMITS

    Liquid temperature between-10℃ and +120℃

    Ambient temperature up to +50℃

    Max. working pressure 16 bar

    Continuous service S1

    • 0.00
      0.00
Product Description

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

The centrifugal pumps are recommended for use in water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets,agricultural.


USING LIMITS

Liquid temperature between-10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

TECHNICAL DESCRIPTION

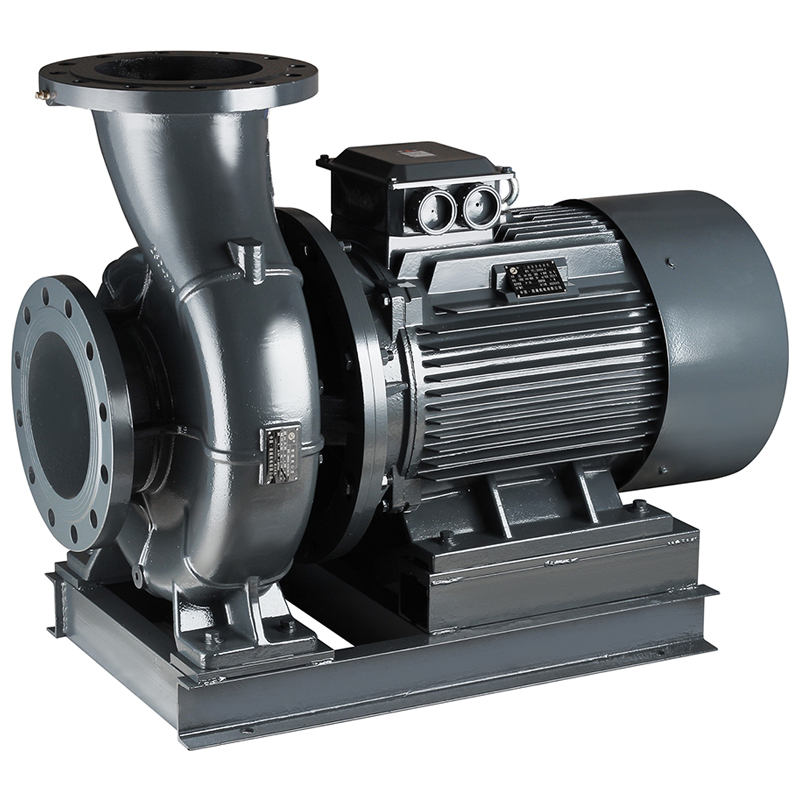

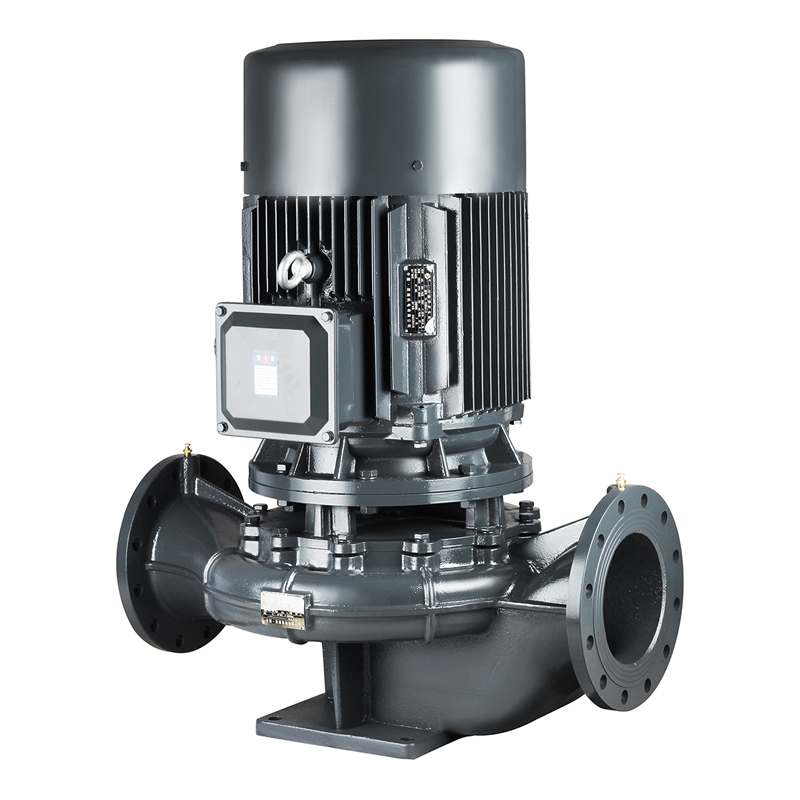

  • New centrifugal pump

  • Original design by PURITY (patented)

  • YE3 high efficient motor, with protection IP55 class F

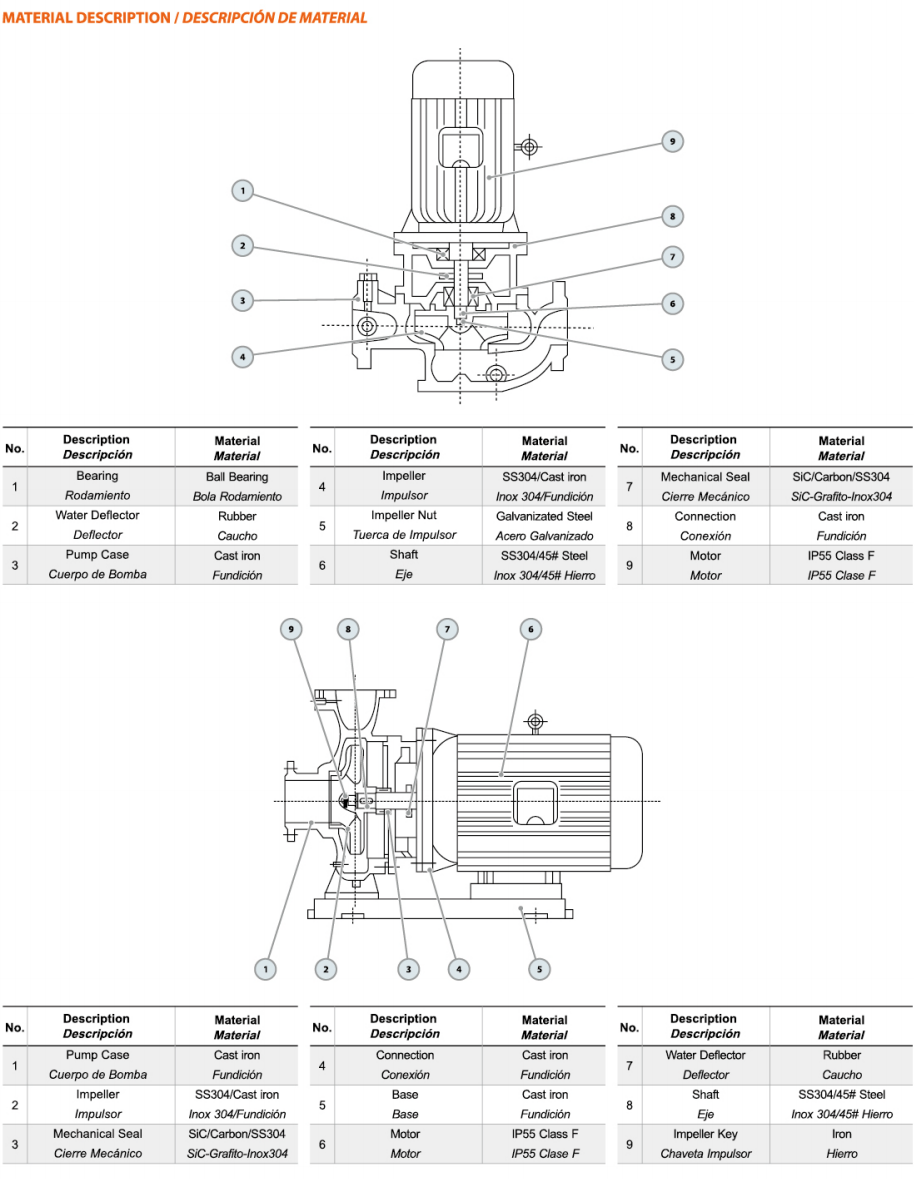

  • Pump case with anti-corrosive coating

  • lmpeller in stainless steel AISI 304 or cast iron

  • Shaft in stainless steel AISI 304 or galvanized iron

  • Quality bearing, wear resistance mechanical seal
