    APPLICATIONS

    The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required. Suitable for use in civil and agricultural applications.


    USING LIMITS

    Liquid temperature between-10℃ and +120℃

    Ambient temperature up to +50℃

    Max. working pressure 16 bar

    Continuous service S1


    PATENTS

    Registered model PC

    Registered Patent Design n*201530476290.2

    • 0.00
      0.00
Product Description

APPLICATIONS

The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high flow rates and mid to low head are required. Suitable for use in civil and agricultural applications.


USING LIMITS

Liquid temperature between-10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1


PATENTS

Registered model PC

Registered Patent Design n*201530476290.2

TECHNICAL DESCRIPTION

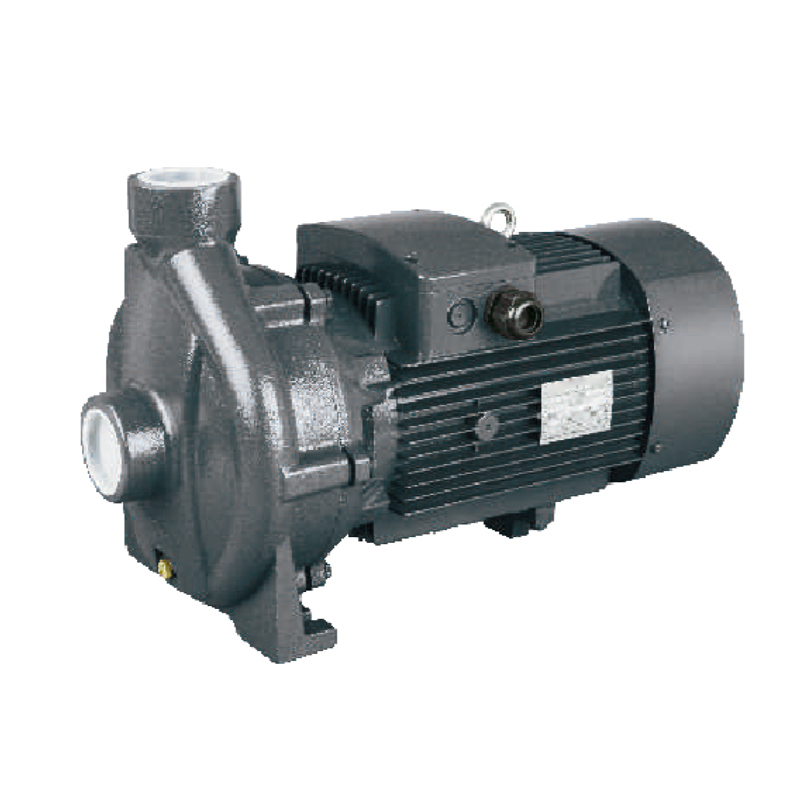

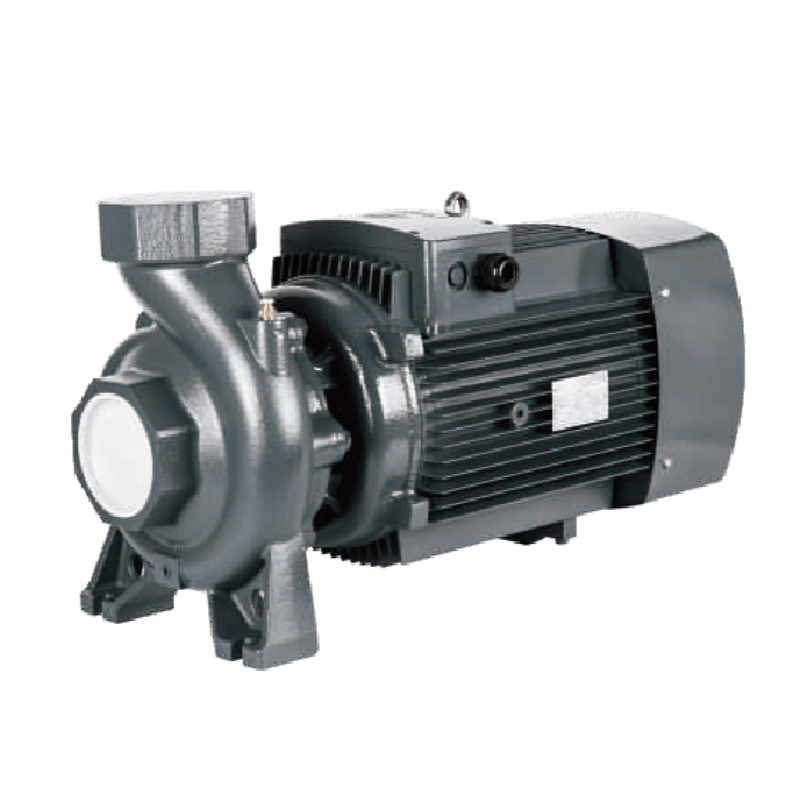

  • New thread port centrifugal pump

  • Original design by PURITY(patented)

  • Both square motor & round motor available

  • YE3 high efficient motor, with protection IP55 class F

  • Pump case with anti-corrosive coating

  • Impeller in brass or cast iron

  • Shaft in stainless steel AISI 304 or galvanized iron

  • Suction and discharge port in G20 thread

  • Quality NSK bearing, wear resistance mechanical seal
