    APPLICATIONS

    Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

    The centrifugal pumps are recommended for use in water supply,cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications water circulation in climatisation sets, agricultural.


    USING LIMITS

    Liquid temperature between-10℃ and +120℃

    Ambient temperature up to +50℃

    Max. working pressure 16 bar

    Continuous service S1


    PATENTS

    Registered model PW

    Registered Patent Design n°201530478502.0

    • 0.00
      0.00
Product Description

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

The centrifugal pumps are recommended for use in water supply,cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between-10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1


PATENTS

Registered model PW

Registered Patent Design n°201530478502.0

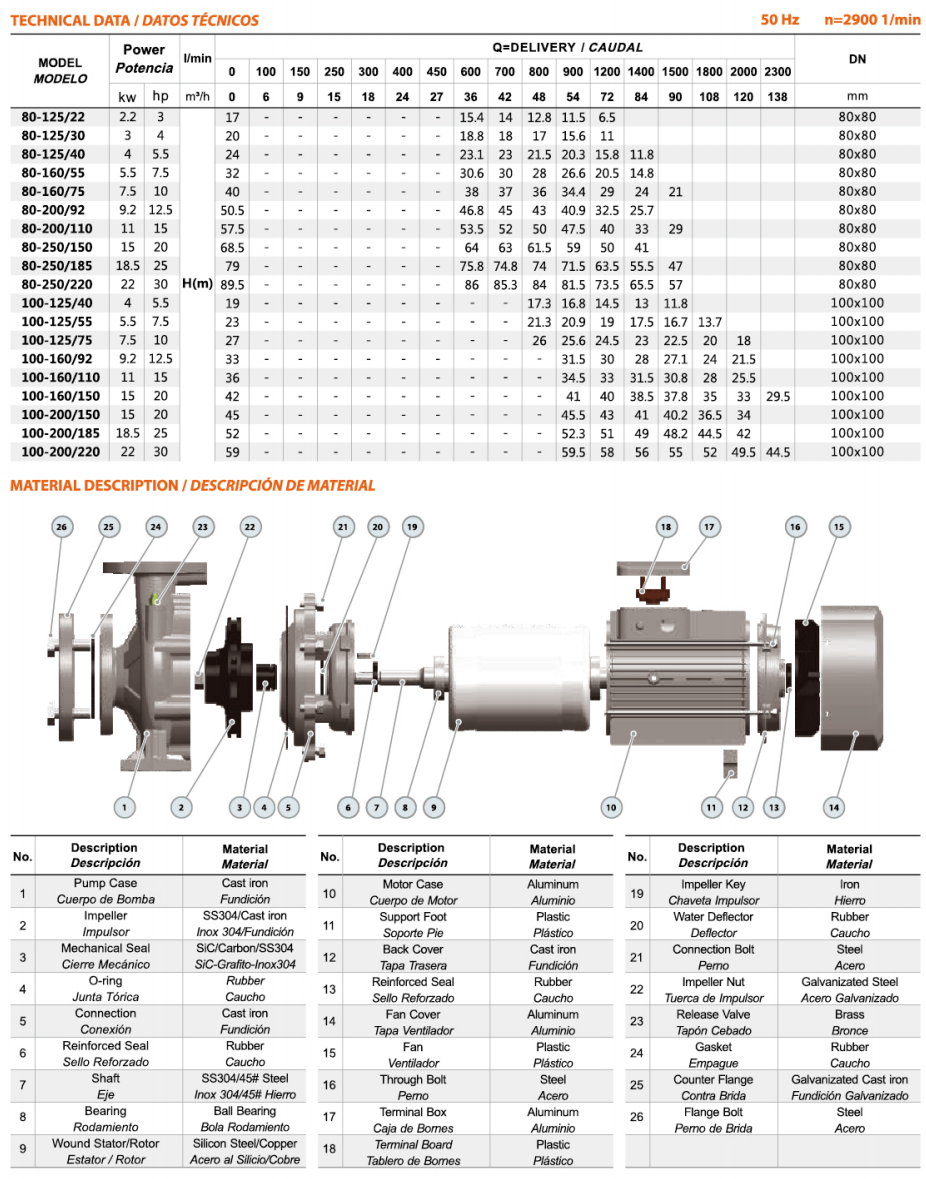

TECHNICAL DESCRIPTION

  • New design centrifugal pump

  • Original design by PURITY(patented)

  • Both square motor & round motor available

  • YE3 high efficient motor, with protection IP55 class F

  • Pump case with anti-corrosive coating

  • lmpeller in stainless steel AISI 304 or cast iron

  • Shaft in stainless steel AISI 304 or galvanized iron

  • Galvanized counter flange with bolts, nuts and gaskets

  • Quality NSK bearing,wear resistance mechanical seal
