Application

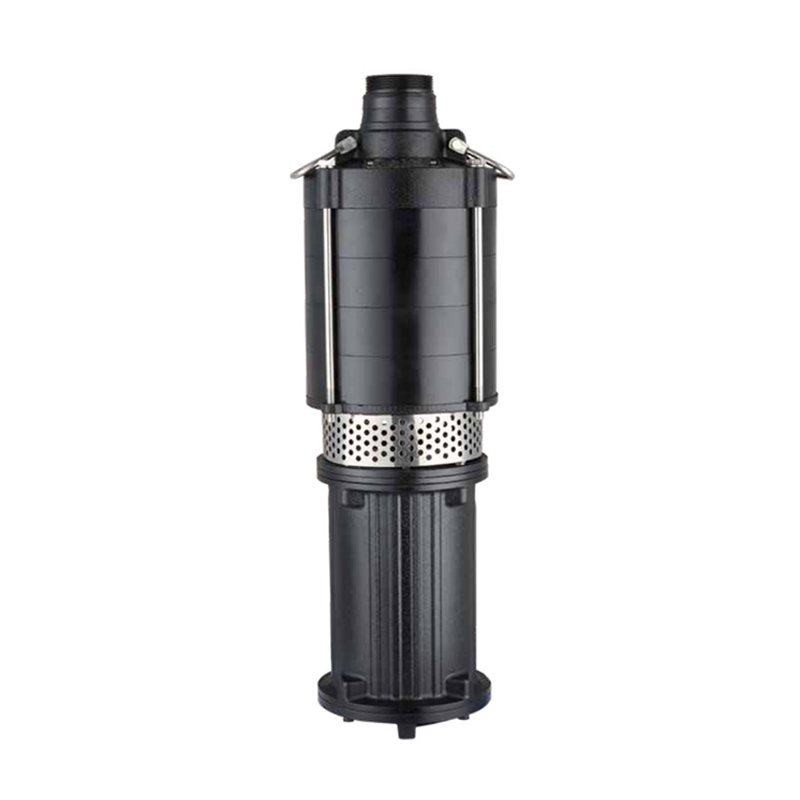

Q(D) type dry submersible electric pump (hereinafter referred to as electric pump) consists of three parts: water pump, seal and motor. The water pump is located at the upper part of the electric pump and is a multi-stage centrifugal impeller with radial guide vane structure; the motor is located at the lower part of the electric pump and is a single-phase or three-phase asynchronous motor structure; a double-end mechanical seal is used between the water pump and the motor, and an "O" type oil-resistant rubber seal is used at each fixed stop seal.

Conditions of Use

1. The medium temperature does not exceed +40°C;

2. The pH value of the medium is between 6.5 and 8.5;

3. The volume ratio of solid impurities does not exceed 0.1%, and the particle size is not greater than 0.2mm;

4. The diving depth does not exceed 5m;

5. The power frequency is 50Hz, the voltage is single-phase AC 220V, three-phase AC 380V, and the voltage fluctuation range is ±10% of the rated value
