    APPLICATIONS

    Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made.

    The self-priming centrifugal pumps are recommended for use in water supply systems,washing systems, pressure systems, irrigation pumps, liquids transfer.


    USING LIMITS

    Liquid temperature between-10℃ and +120℃

    Ambient temperature up to +50℃

    Max. working pressure 16 bar

    Continuous service S1


    PATENTS

    Registered model PXZ

    Registered Patent Design n°201530016935.4

    • 0.00
      0.00

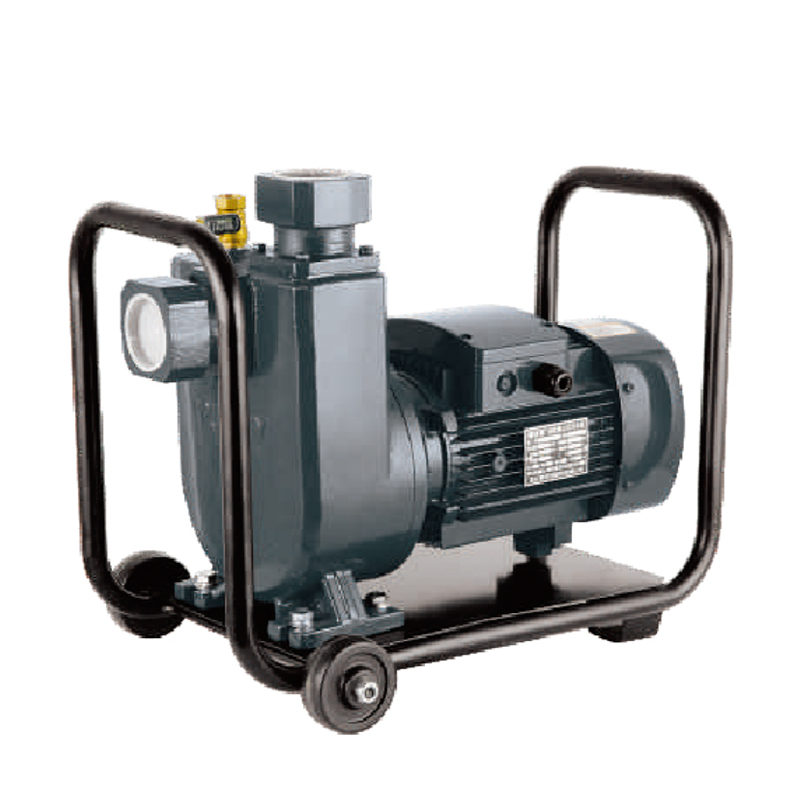

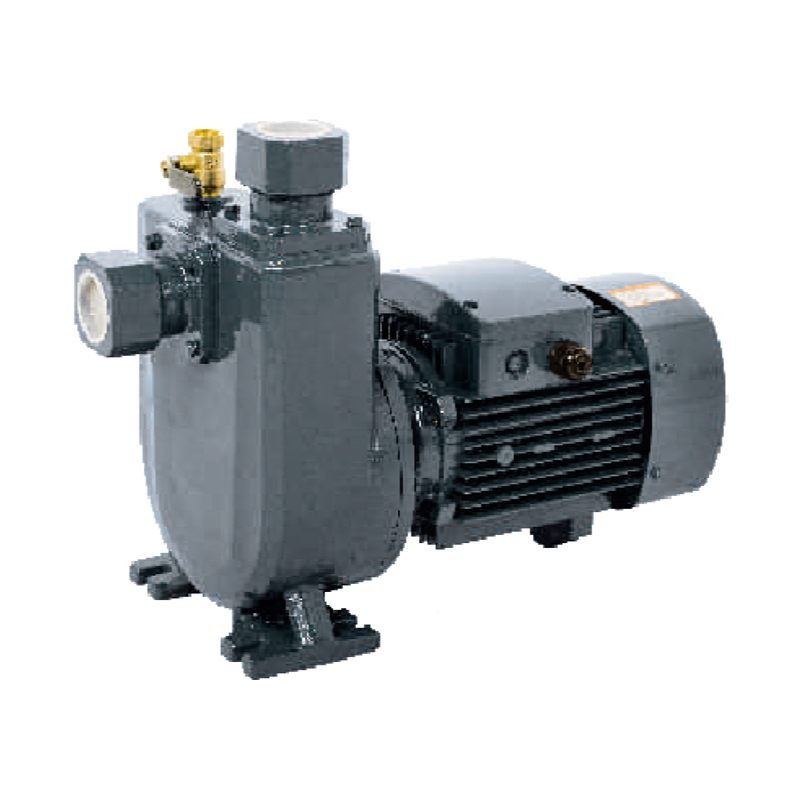

Product Description

APPLICATIONS

Suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made.

The self-priming centrifugal pumps are recommended for use in water supply systems,washing systems, pressure systems, irrigation pumps, liquids transfer.


USING LIMITS

Liquid temperature between-10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1


PATENTS

Registered model PXZ

Registered Patent Design n°201530016935.4

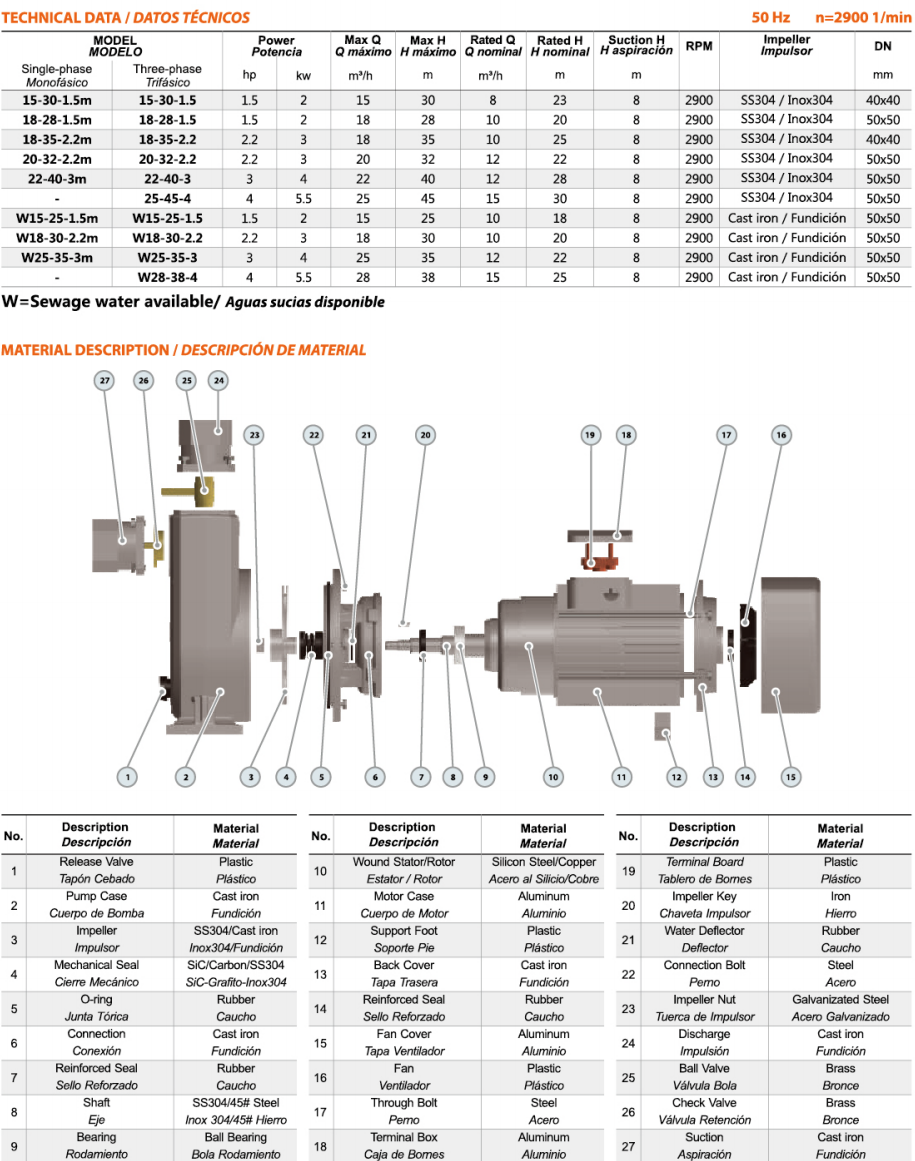

TECHNICAL DESCRIPTION

  • New self-priming centrifugal pump

  • Original design by PURITY(patented)

  • Both square motor & round motor available

  • YE3 high efficient motor, with protection IP55 class F

  • Pump case with anti-corrosive coating

  • lmpeller in stainless steel AISI 304 or cast iron

  • Shaft in stainless steel AISI 304 or galvanized iron

  • Suction and discharge port in G20 thread

  • Quality NSK bearing, wear resistance mechanical seal
