Application

1. Subvert the appearance design of the industry and lead the industry trend.

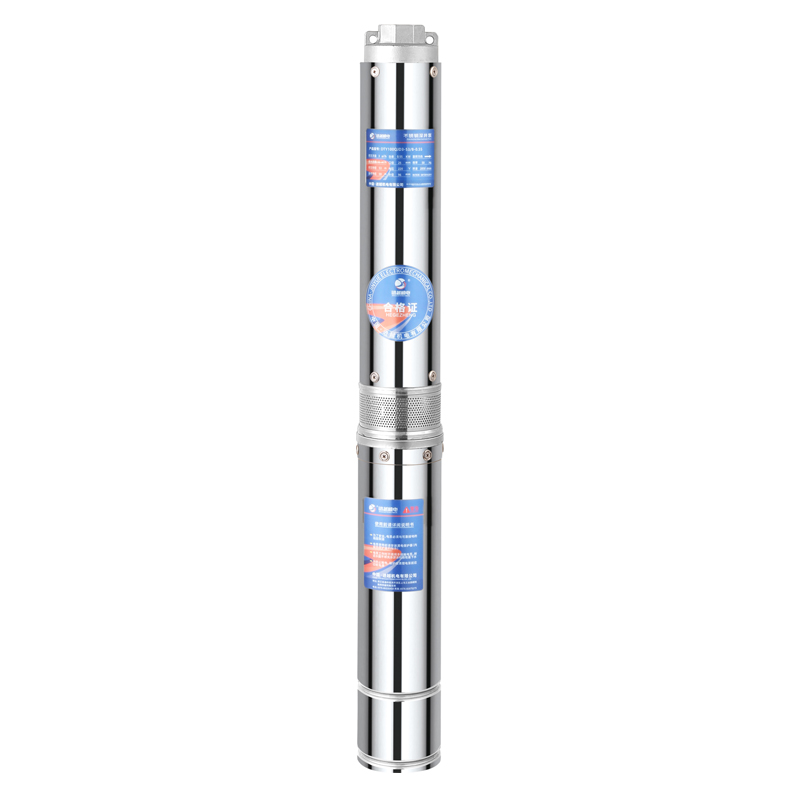

2. The deep well pump adopts a wide voltage design, single-phase 120V startup, and 160V-240V normal use. The motor has a built-in protector with burn-in protection function.  Full lift design, can be used with confidence under any load.

3. Use H-grade all-copper enameled wire, with high temperature resistance of 180°C.

4. Oil-immersed motor, submersible depth up to 150m.

5. Use 304# stainless steel welded shaft and stainless steel 304 screws, which are corrosion-resistant and more durable. 304 barrel is optional.

6. The overall floating impeller structure design reduces the starting torque and can pass through small impurities such as fine sand.

7. Plug-in cable, easy to replace.

8. Pin-type structure, easy to disassemble.

Conditions of Use

1.The temperature does not exceed 40℃

2. The solid content (by weight) does not exceed 0.01%

3.The acid-base pH value is 6.5~8.5

4. The combined hydrogen sulfide content does not exceed 1.5mg/, and does not contain any oil. (lf used in deep wells, the wellbore should be kept vertical and no two-way bends are allowed)
