Application

Can be used to transfer clean water or other liquids similar towater in physical and chemical properties.

Suitable for industrial use and urban water supply , domestic water supply ，high rise buildings , long distance water transfer and related auxiliary equipment etc.

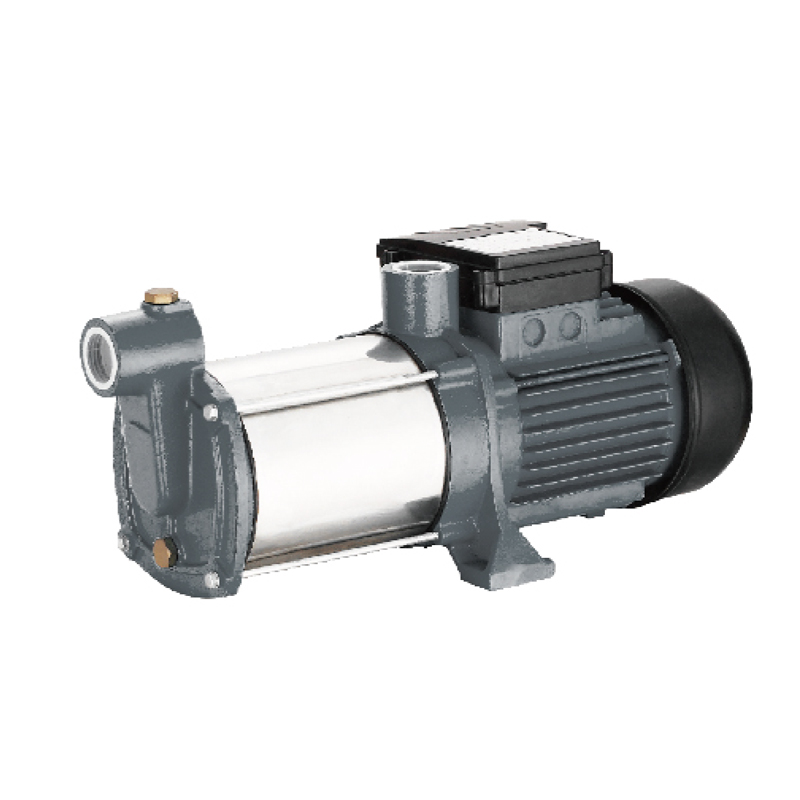

Pump

Transfer of clean water or non-aggressive liquid

Special anti-rust treatment for pump body and support

AISI 304 shaft

Max. liquid temperature:+60℃

Max.suction: +8 m

Motor

Copper winding

Built-in thermal protector for single phase motor

Insulation class: F

Protection class: IPX4

Max. ambient temperature:+40℃

IE2 motor(Three phase, power≥0.75kW)
